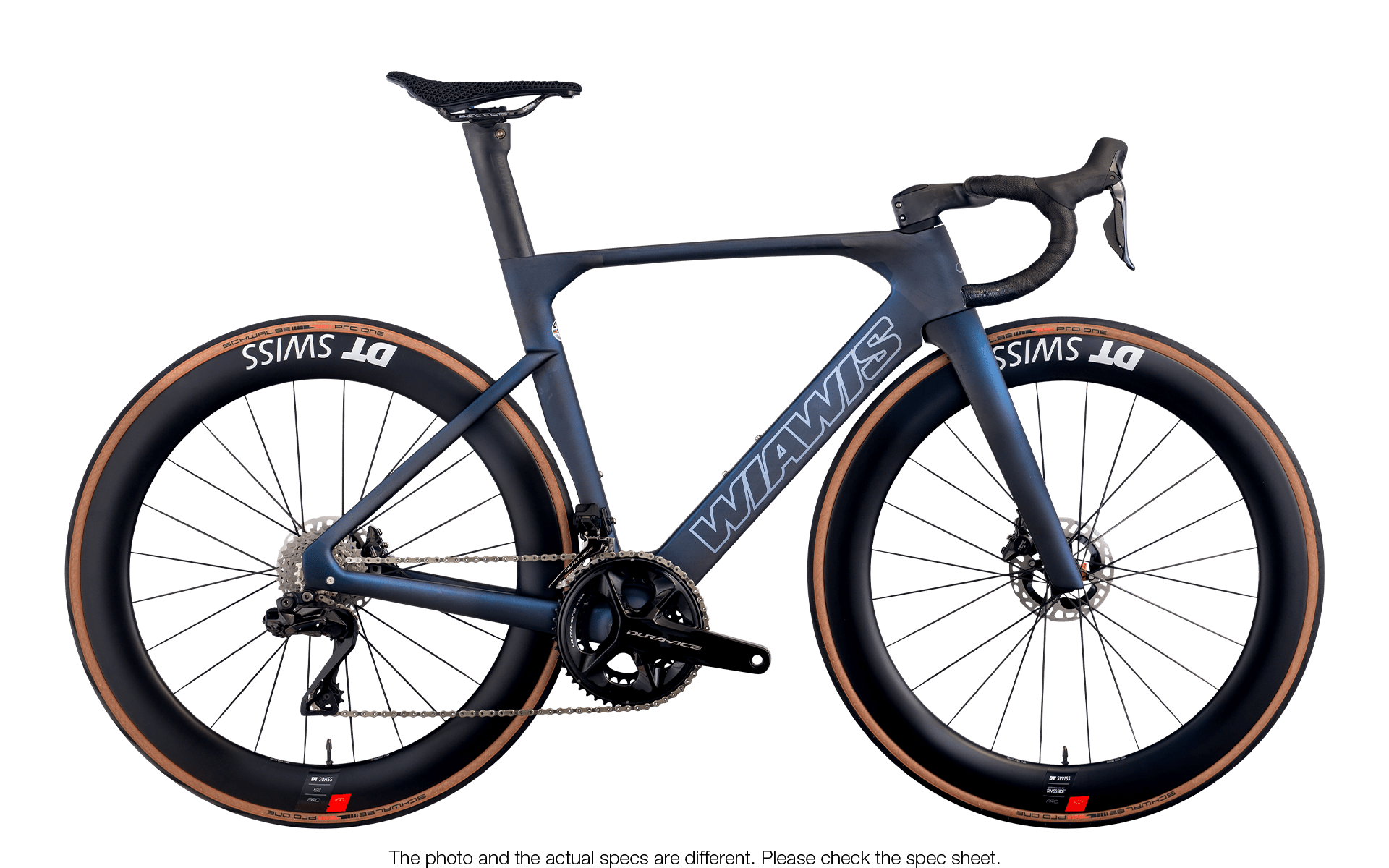

| WAWS-PRO XP 2 ULTEGRA Di2 | |
|---|---|

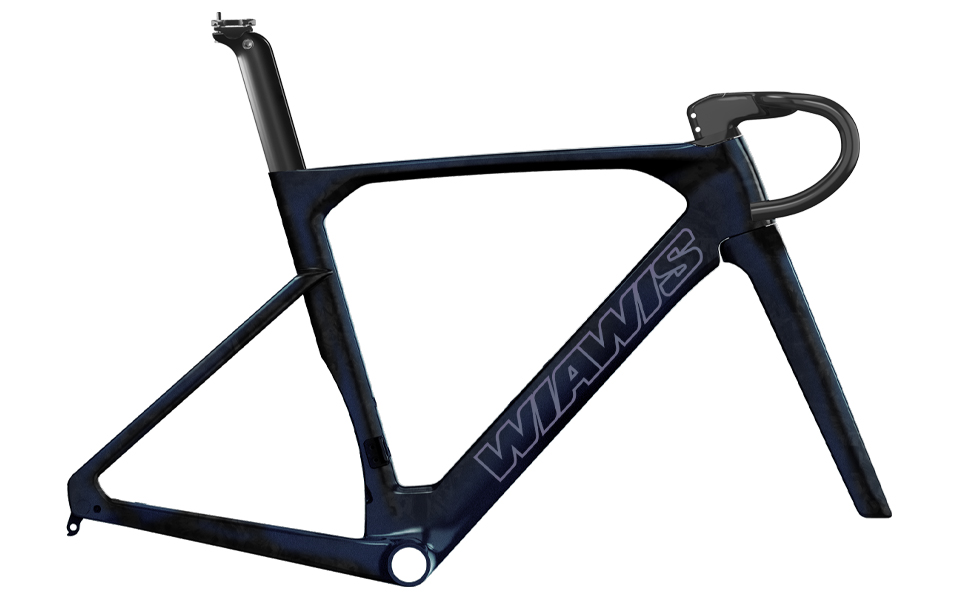

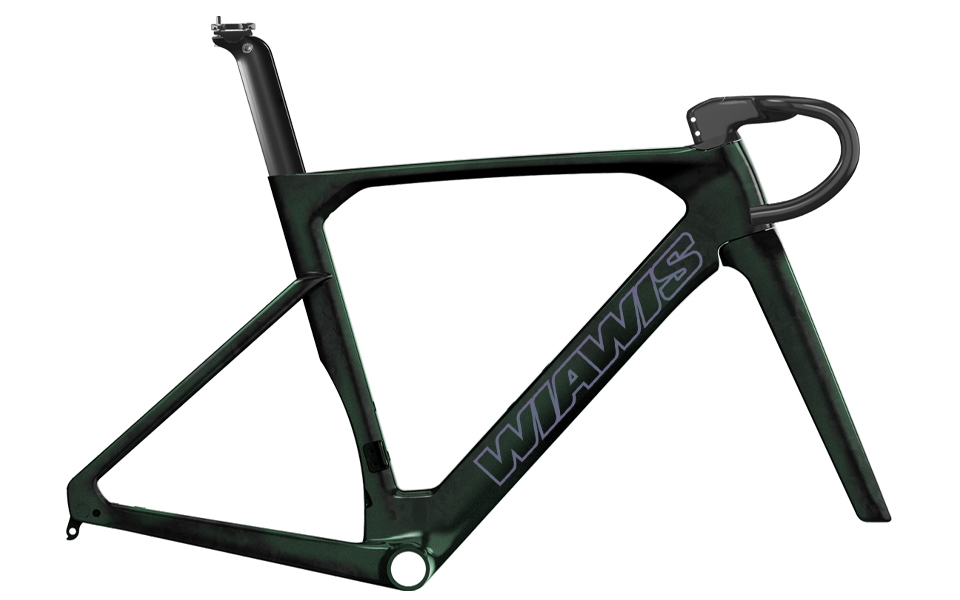

| FRAME | WAWS-PRO XP 2 WINACT-G3 CARBON |

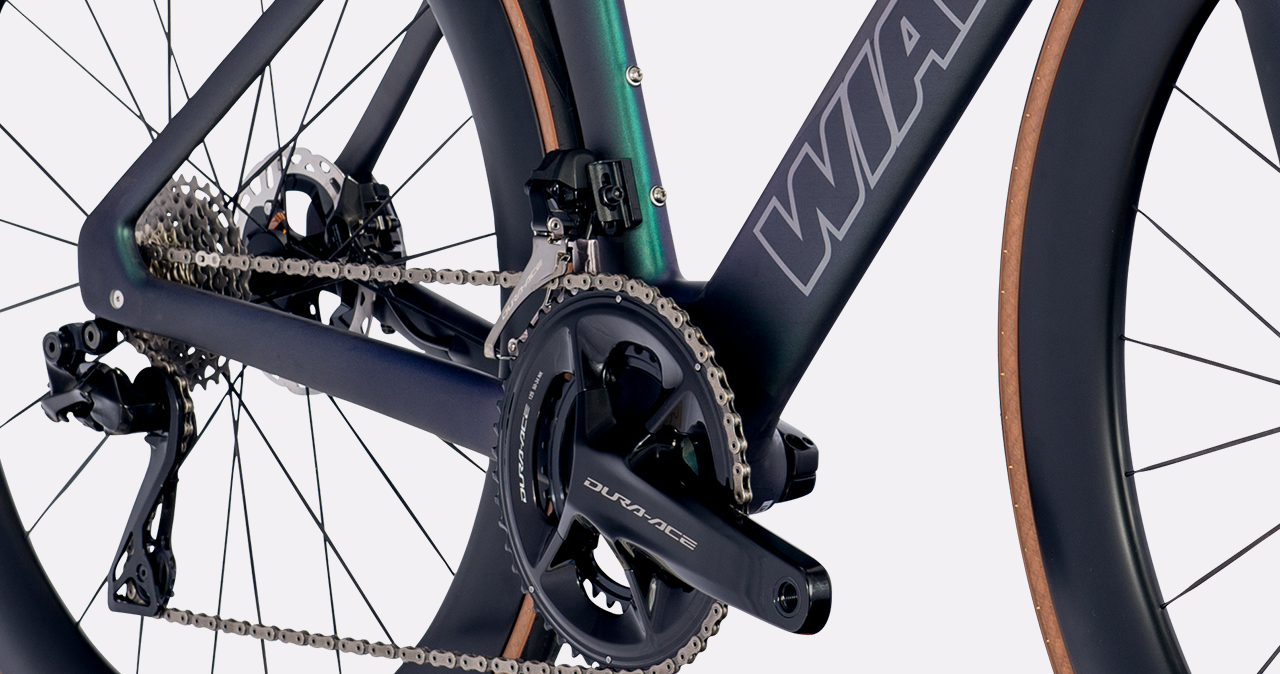

| GROUPSET | SHIMANO R8170 ULTEGRA Di2 GROUPSET |

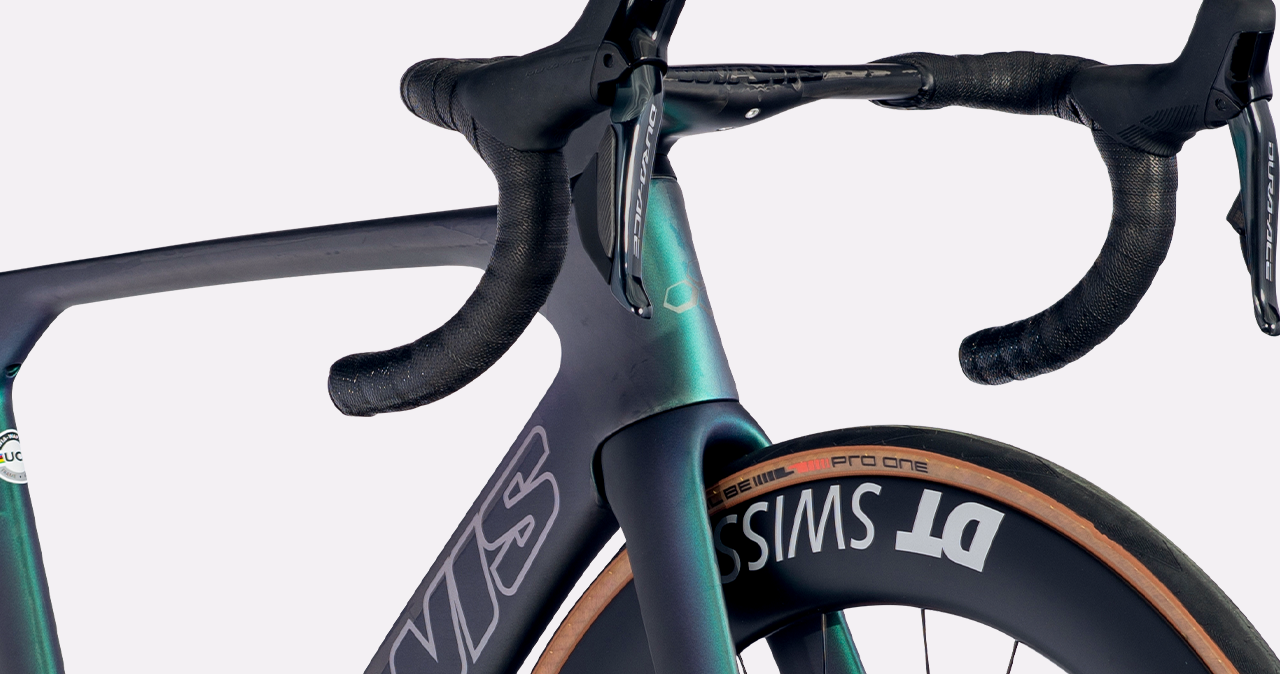

| HANDLEBAR | CARRMATO HB-WAWS-PRO AI 2 CARBON |
| STEM | - |
| SEATPOST | CARRMATO SP-WAWS-PRO 2 CARBON |
| FORK | WAWS-PRO XP 2 CARBON |
| SADDLE | SANMARCO 3D 2.0 CARBON |
| WHEELSET | DT SWISS ARC1400 |
| TIRE | SCHWALBE PRO ONE 28 |
| XXS | XS | S | M | L | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A. Head tube Angle | 71˚ | 72˚ | 72.5˚ | 73˚ | 73.5˚ | |||||
| B. Head Tube Length | 97 | 101 | 115 | 130 | 150 | |||||
| C. Top Tube Length (Horizontal) | 500 | 516 | 534 | 548 | 565 | |||||
| D. Stand over Height | 735 | 755 | 771 | 789 | 812 | |||||
| E. Bottom Bracket Drop | -72 | -72 | -72 | -70 | -70 | |||||
| F. Bottom Bracket Height | 263 | 263 | 263 | 265 | 265 | |||||
| G. Wheel base | 968 | 974 | 978 | 981 | 993 | |||||
| H. Seat Tube Length (B-B Center to Center) | 453 | 480 | 497 | 512 | 537 | |||||
| I. Seat Tube Length (B-B Center to Top) | 465 | 491 | 509 | 525 | 550 | |||||
| J. Seat Tube Angle | 75˚ | 75˚ | 74˚ | 73.5˚ | 73.5˚ | |||||
| K. Chain Stay Length | 410 | 410 | 410 | 410 | 410 | |||||
| L. Reach | 368 | 380 | 384 | 389 | 400 | |||||
| M. Stack | 500 | 507 | 522 | 537 | 558 | |||||
| N. Front-Center | 568 | 574 | 578 | 581 | 593 | |||||
| O. Fork Offset | 46 | 46 | 46 | 43 | 43 |
