Self-manufacturing high quality graphene prepreg and EPM techniques have improved durability and increased torsional stiffness. We use laser to measure the center and jigs to manage the process more accurately. Equipped with our own EN test machine, the test is carried out under conditions up to 50% harsher than the regulations to produce high-quality products.
The WIAWIS road bikes have a wide range of racing models that can be used from beginners to national representatives. Designed with emphasis on geometry and frame weight. Designed to be optimized for each grade, you have a wide choice of models that fit you.
The WIAWIS road bikes have a wide range of racing models that can be used from beginners to national representatives. Designed with emphasis on geometry and frame weight. Designed to be optimized for each grade, you have a wide choice of models that fit you.
WIAWIS's aero frames and aero components are designed by applying feedback through simulations such as CFD and FEA and wind tunnel testing during the development phase. Structural and air resistance analysis is an important part of the development phase.
In line with the trend of requiring aerodynamic efficiency, WIAWIS has integrated the frame, components and shaped the tubing of the frame into an aerodynamic form.
The main parts of the WIAWIS road bikes are designed, built and assembled on our own. Functionally, it provides better compatibility with each components and frames, which is also why a quick warranty response is possible.

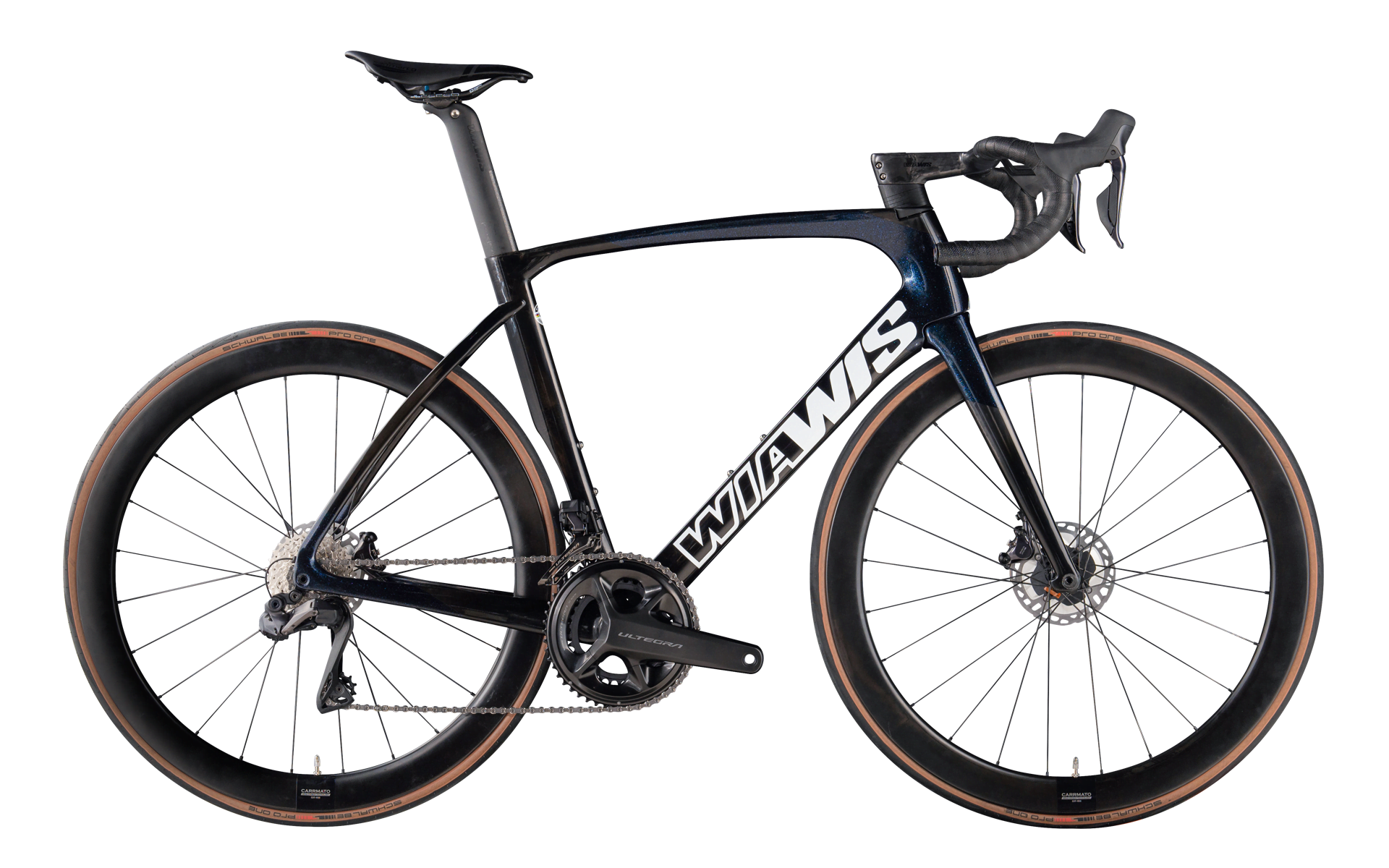

| WAWS-PRO B | |
|---|---|
| FRAME | WAWS-PRO CARBON |
| GROUPSET | SHIMANO ULTEGRA R8170 |
| HANDLEBAR | CARRMATO HB-WAWS AI CARBON |
| STEM | - |
| SEATPOST | CARRMATO SP-WAWS PRO CARBON |
| FORK | WAWS-PRO CARBON |
| SADDLE | SANMARCO SHORTFIT DYN ASPIDE OPEN WIDE |
| LEVERS | SHIMANO ULTEGRA ST-R8170 |
| BRAKE | SHIMANO ULTEGRA BR-R8170 |
| FRONT DERAILLEUR | SHIMANO ULTEGRA FD-R8150 |
| REAR DERAILLEUR | SHIMANO ULTEGRA RD-R8150 |
| CRANK | SHIMANO ULTEGRA FC-R8100 50-34T, 52-36T |
| SPROCKET | SHIMANO ULTEGRA CS-R8100 11-30T |
| CHAIN | SHIMANO ULTEGRA CN-M8100 |
| BB | SHIMANO ULTEGRA PRESSFIT 71-41B |
| ROTOR | SHIMANO SM-MT800 140mm |
| WHEELSET | CARRMATTO CXT-R50 350 CARBON |
| TIRE | SCHWALBE PRO ONE 25 |
| XXS | XS | S | M | L | |
|---|---|---|---|---|---|
| A. Head tube Angle | 70˚ | 71˚ | 72˚ | 73˚ | 73˚ |
| B. Head Tube Length | 105 | 110 | 120 | 140 | 160 |
| C. Top Tube Length (Horizontal) | 510 | 520 | 535 | 545 | 560 |
| D. Stand over Height | 744 | 755 | 774 | 803 | 824 |
| E. Bottom Bracket Drop | -69 | -69 | -69 | -69 | -69 |
| F. Bottom Bracket Height | 265 | 265 | 265 | 265 | 265 |
| G. Wheel base | 980 | 983 | 989 | 995 | 1011 |
| H. Seat Tube Length (B-B Center to Center) | 438 | 458 | 478 | 508 | 528 |
| I. Seat Tube Length (B-B Center to Top) | 450 | 470 | 490 | 520 | 540 |
| J. Seat Tube Angle | 74˚ | 74˚ | 74˚ | 74˚ | 74˚ |
| K. Chain Stay Length | 405 | 405 | 405 | 405 | 405 |
| L. Reach | 367 | 375 | 386 | 390 | 399 |
| M. Stack | 499 | 507 | 520 | 541 | 562 |
| N. Front-Center | 575 | 578 | 584 | 590 | 606 |
| O. Fork Offset | 45 | 45 | 45 | 45 | 45 |
